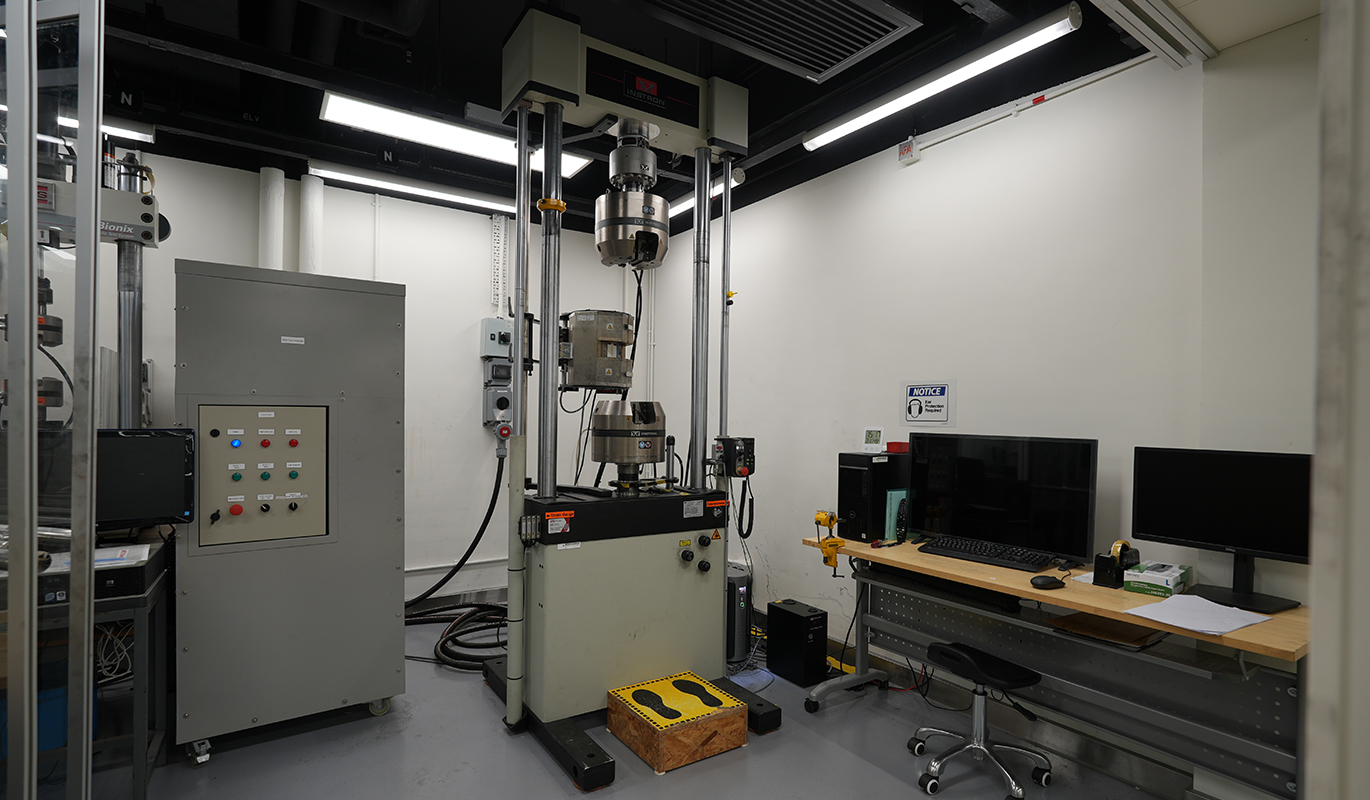

Elevated Temperature Servohydraulic Universal Testing Machine for Destructive Characterization

Location: W103g

Process: Material Testing

Specification

• Max. Load: ±250kN
• Actuator stroke: ±75mm Furnaces
• Max. Temp.: 1050°C
• Heating Zone: Ø90mm x 300mm
• Range of Flat Grips: 1 to 42mm thickness, flat jaw faces
• Range of Cylindrical Grips: Ø5 to 34mm, vee jaw faces
• Elevated temperature pull rod's adaptor:
  • M20 threaded adaptor
  • M12 threaded adaptor
  • M8 threaded adaptor
  • 8mm button-headed adaptor
  • 5mm button-headed adaptor
• Built-in strain measurement
  • Ambient temperature
  • 25mm gauge length extensometer
  • 5mm gauge length crack opening displacement gauge
  • 120/350Ω, 4 channels Quarter-bridge strain gauge
  • ±15mm travel LVDT

• Elevated temperature (Max 1000°C)
  • 12.5 mm guage length
  • 25 mm guage length extensometer
