Features:

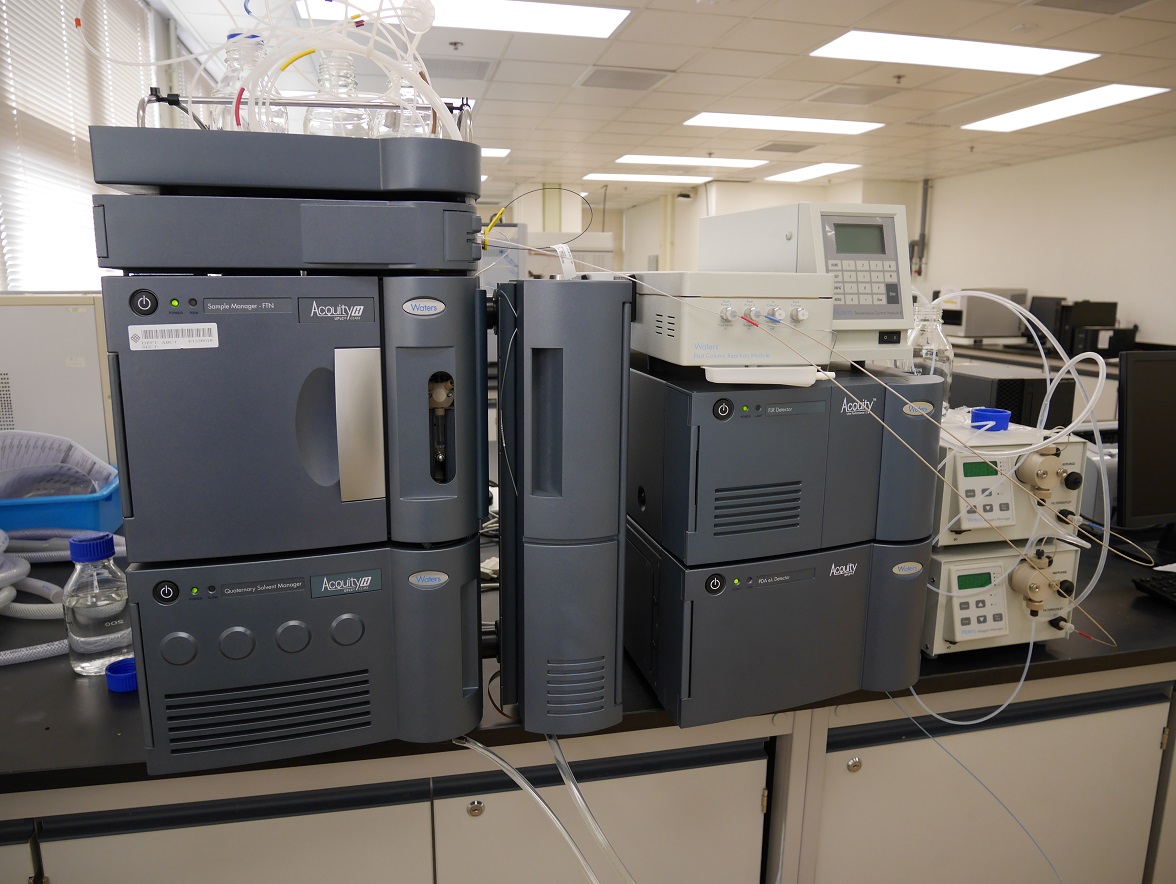

ACQUITY UPLC H-class system delivers higher quality of separations of target compound with flexibility to run different mode of chromatography all on the same system. The current system coupled with both Photodiode Array (PDA) and Fluorescence (FLR) detectors allows users to detect the target compound using absorbance with board wavelength as well as using fluorescence.
Specifications:
Injection volume: up to 10 µl
Choice of solvent: up to four solvents in any combination
Flow rate: up to 2 ml/ minute
pH range: 2 to 12
Column size: 4.6 mm internal diameter, up to 150 mm length with filter or guard column
Column temperature: 20 to 90 C
Sample compartment temperature: 4 to 40 C
Wavelength of PDA e? detector: 190 to 800 nm
Excitation wavelength of FLR detector: 200 to 890 nm
Emission wavelength of FLR detector: 201 to 900 nm
Notes to users:
First-time users must be trained by equipment-in-charge before they can use the instrument independently.
Samples should be prepared in an appropriate way to avoid blockage UPLC system.
Booking:
Please visit our University Research Facility Management System (URFMS) website for registration, training request and booking arrangement.
Contact information:
Location: Y1308, Block Y, The Hong Kong Polytechnic University
Equipment-in-change: Dr. Sirius Tse (Office: U514)
Email: sirius.tse@polyu.edu.hk
Telephone: 3400 8878
