Introduction:

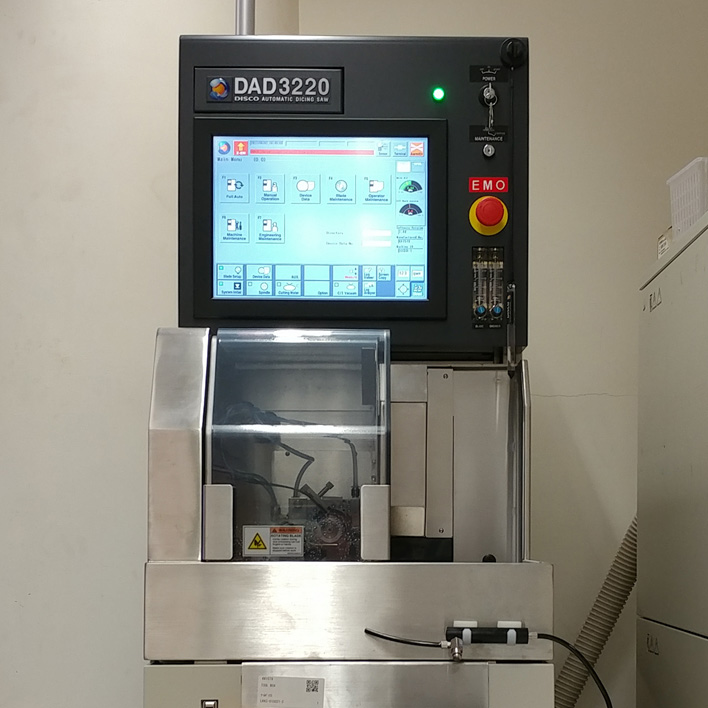

DicingDISCO DAD3220 is a high performance automatic dicing saw for processing electronic component materials such as glasses and ceramics. microscope and lens with the visible range to full of the work piece surface.



Specifications / Applications:

  • Spindle output: 1.5 kW
  • Torque: 0.48 Nsm
  • Wafer size up to 6" diameter or square
  • Z-axis moving resolution: 0.05 µm



Notes to user:

User shall bring your own cutting blade, suggested model: NBC-Z 2050 “55 x 0.03 x 40” or “55 x 0.007 x 40”



Supplier information:

         https://www.disco.co.jp/eg/products/catalog/pdf/dad3220.pdf



Please click here to download the equipment introduction poster.



Equipment location:

Room BC708a
