Assessments

Physical Observation

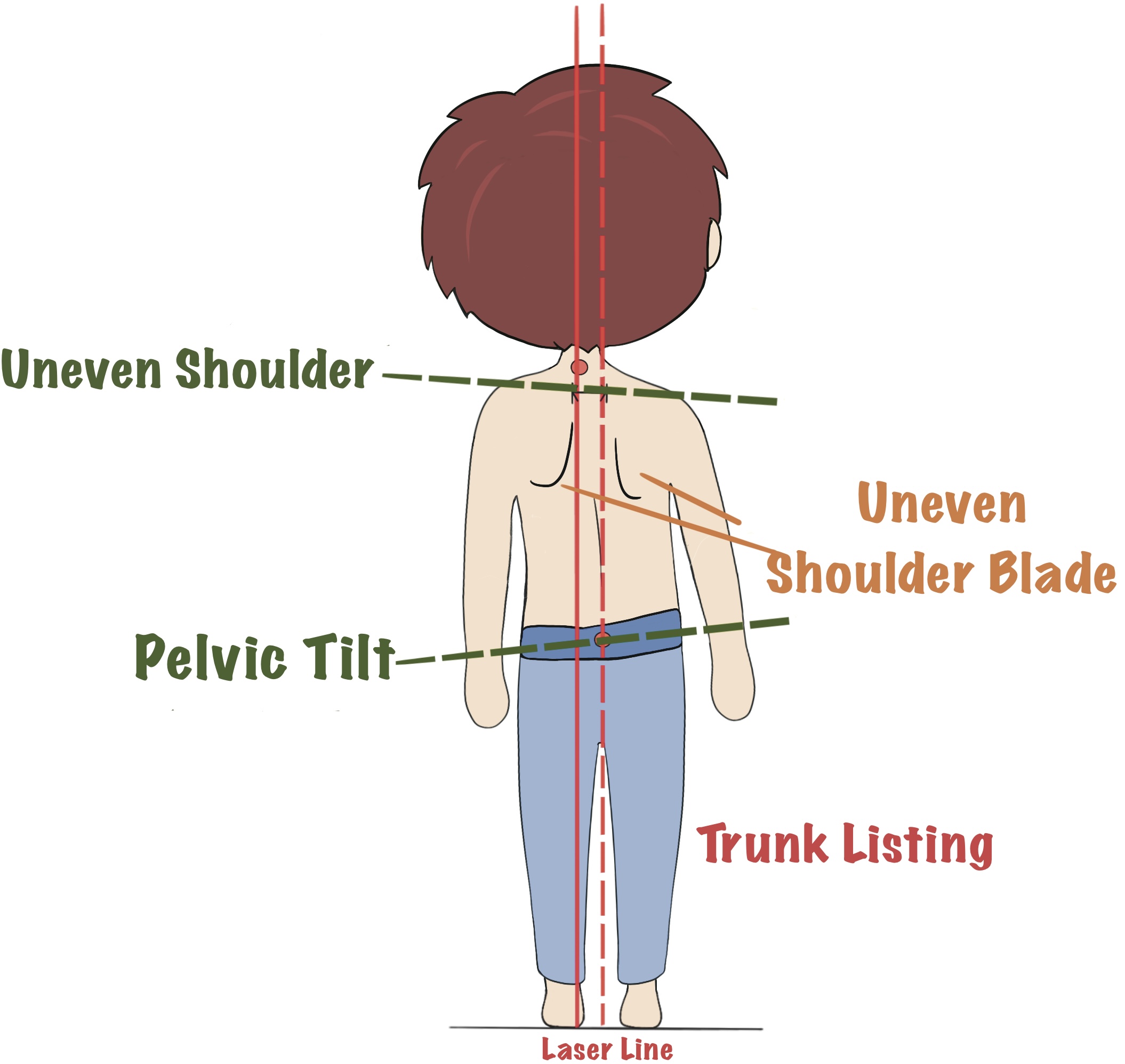

Scoliosis can be observed by body asymmetry such as uneven shoulders, shoulder blade, thoracic hump, loin depression or pelvic tilt. In severe cases, appearance and cardiopulmonary function could also be affected [1,2]. Observation of the body shape and contour is a simple method to assess the potential of having scoliosis, which may indicate the need for further investigations while it would be difficult for mild scoliosis as those subtle changes may not be noticeable.





Adam's Forward Bend Test

The Adam’s forward bending test is a useful tool to detect structural or postural scoliosis. This method is commonly used in scoliosis screening programs at schools [3-5].

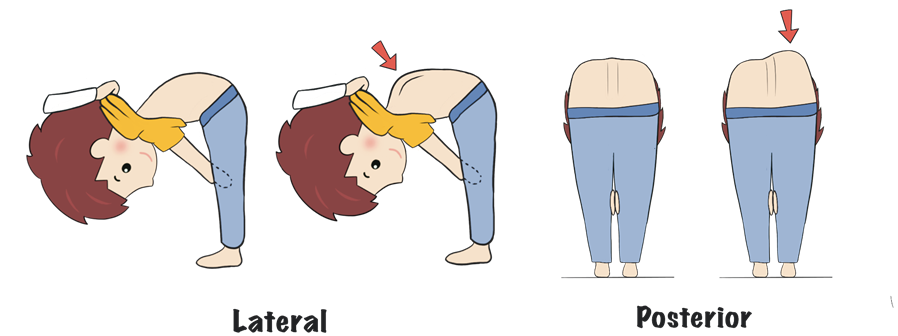

During the assessment, the child is required to bend his or her trunk forward to a horizontal level with feet slightly apart, knees extended with palms together and placed in-between the knees. Clinician will measure the angle of trunk inclination by moving an inclinometer named Scoliometer along the child’s back over the spinous processes. The measured tilting angle greater than 5 degrees may indicate a potential scoliosis. With the forward bending trunk, clinician can also observe body asymmetry of uneven shoulder blade, rib hump or loin depression resulting from vertebral rotation [6].

         Adam's Forward Bend Test

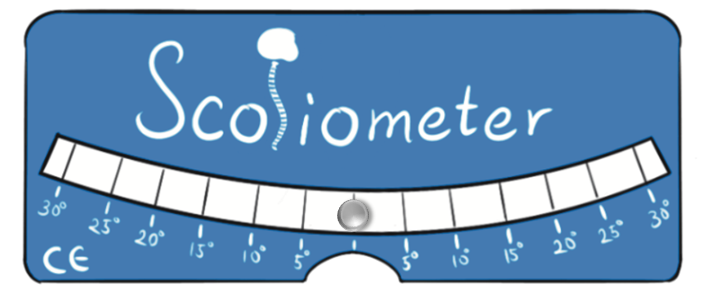

      Scoliometer



Back Profile

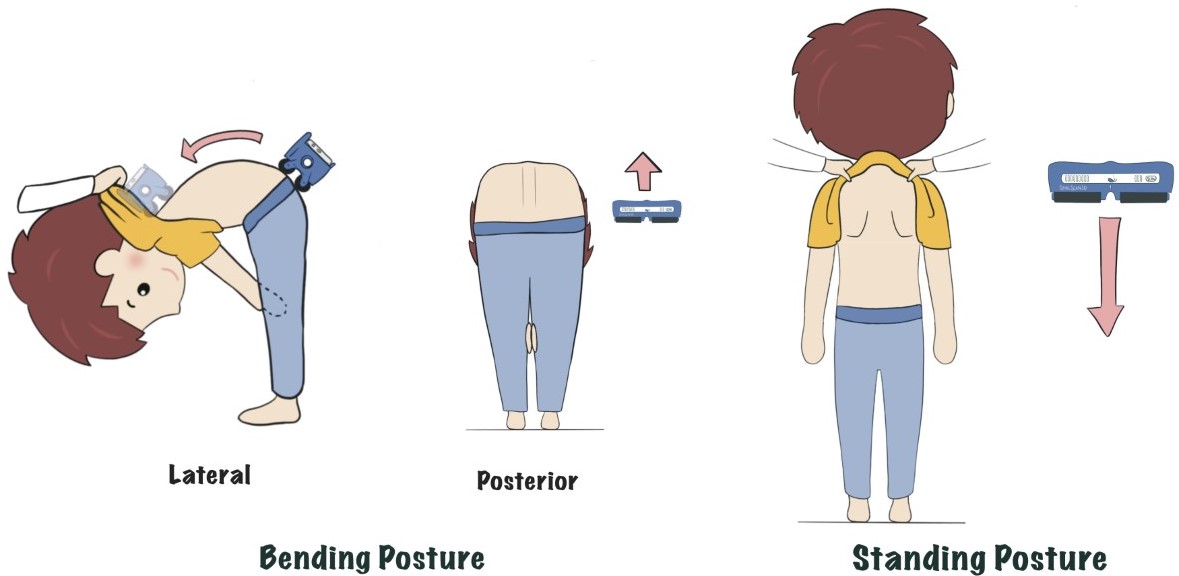

The SpineScan3D is a recent development in Hong Kong, which allows the back-profile’s screening to be performed at schools. This portable device that can be connected with a smartphone, which allows to detect and record the trunk rotation in forward bending (same to the “Adam’s forward bending test”) or upright position.

SpineScan3D







X-Ray & Cobb Angle

X-Ray imaging is often used to assess scoliosis severity in which the Cobb method is endorsed by the Scoliosis Research Society as a “gold standard” for scoliosis evaluation [7,8]. The measured Cobb Angle is a standard measurement to diagnose and track the progression of scoliosis. A Cobb angle larger than 10^o can be regarded as having Scoliosis (view more…) [9].

Cobb angle



Ultrasound Scanning

Ultrasound is radiation-free and more cost effective compared to X-ray imaging. Therefore, it is suitable to be used in assessing progress of scoliosis in children across the high risk period [10,11]. Two ultrasound imaging systems including a stationary system "Scolioscan Station" and portable system “Scolioscan Air” have been developed recently by The Hong Kong Polytechnic University. The two systems are used in the “Jockey Club Children’s Spine Care Community Project” to estimate the severity of scoliosis of children.

Procedure of using Scolioscan Station





Scolioscan Air





Magnetic Resonance Imaging (MRI)

MRI combines computer technology, radio waves and a magnetic field to generate images of body tissues in different anatomical planes. MRI is non-invasive and radiation-free imaging technique which makes it an attractive assessment method for scoliosis [12-14]. It can produce detailed images of the soft tissues including intervertebral discs, spinal cord and nerves. Contraindications for MRI include pacemakers, cerebral aneurysm clips and metallic implants. However, it is costly and expert dependent [15].

MRI image of scoliosis

(Reference)





Computed Tomography (CT)

CT uses computer technology in combining X-ray measurements taken from different angles to produce cross-sectional images of the body. CT can produce detailed images of the bone, spinal cord and intervertebral discs that facilitate diagnosis of spinal deformities. CT is useful in patients who are not suitable to have MRI such as those with metal implants or pacemakers [16,17].

CT image of scoliosis

(Reference)





EOS system

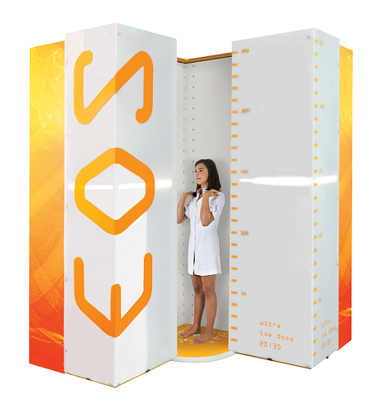

The EOS X-ray imaging system is able to produce full body stereo-radiographic images in either standing or seated positions with ultra-low dose of radiation [18]. Using the built-in software (SterEOS), 3D images of the skeleton system can be reconstructed. Therefore, it is very useful for diagnosing spinal deformities such as scoliosis, which is considered as a 3D deformity [19].

EOS system

(Reference)
