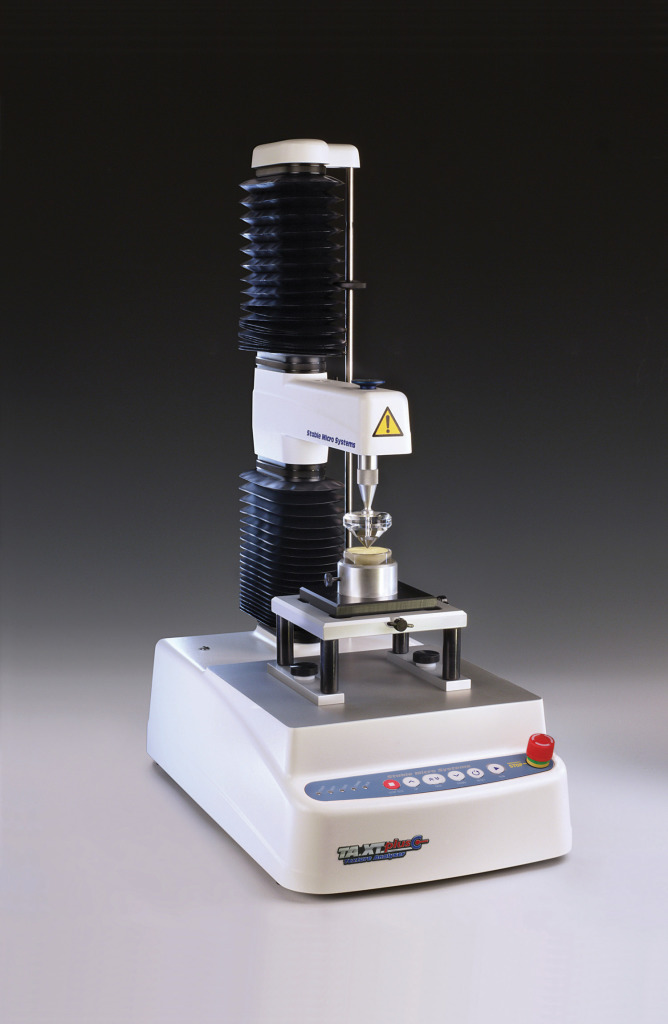

Stable Micro Systems TA.XTplusC Texture Analyser

Name of the equipment

Brand

Stable Micro Systems

Description

A single-column, portable solution for your texture analysis and materials property testing, measuring up to 50kg in force. With a speed range of 0.01 to 40mm/second this extremely precise model can be programmed to conduct almost any mechanical test imaginable, allowing the imitation of real-life situations, using the vast range of probes and fixtures. It is also available in both standard and extended heights offering testing apertures of 370 and 590mm.

Specification

Force capacity: 50kg.f (500N)
Force resolution: 0.1g
Loadcells: 0.5, 5, 30, 50kg.f
Speed range: 0.01 – 40mm/s
Maximum aperture: 370mm/590mm
Distance resolution: 0.001mm
Data acquisition rate: 2000pps

Applications

It is capable of measuring virtually any physical product characteristic such as hardness, fracturability, adhesiveness, gel strength, extensibility of foods, gels, and adhesives.
