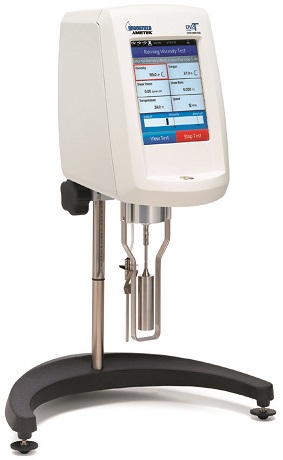

Brookfield (USA) Viscometer, Cat. No. DV2TRV

Name of the equipment

Brookfield (USA) Viscometer, Cat. No. DV2TRV

Brand

Brookfield

Description

Displayed info includes: viscosity (cP/mP·s), temperature (°C/°F), shear rate/stress, % torque, spindle/speed, step program status

Built-In options include timed tests, data averaging, programmable QC limits/alarms, customizable speed/spindle lists, on screen data comparison

Auto range shows maximum viscosity measured with any spindle/speed combination

Front-facing bubble level for convenient viewing

Built-in temperature probe

Speed: at least 0.1 – 200RPM

Number of increments: 200

Measuring range/Viscosity range: 100 – 40 M cP (M = 1 million)

Accuracy of ±1.0% of range with displayed test data

Repeatability of ±0.2%

Using for the UL Spindle

-          Enhanced UL Adaptor for low viscosity materials

1. Small sample size: 16mL
2. Viscosity measurement Ranges cP (mPa s): 3.0-2K (K=1thousand)
3. Magnetic stirring motor must be equipped and stirring speed range: 0.5 to 100 RPM and Shear Rate range: 0.61 to 122.30 (sec^-1)

Using for the SC4-21, SC4-28

1. Small sample adaptor that is allowed to connect with two sample chamber sizes: volume = 7.1mL and 11.0mL
2. adaptor can connect with two size spindles made of stainless steel to measure viscosity range =25-500K cP (K=1thousand) and 250-5M cP (M=1 million)

Applications

RV is for medium viscosity materials than those measured with an LV torque. Typical examples include creams and food.

Contact information

Equipment-in-charge: Miss Fung Lok Wan, Lolita

Email: lok-wan.fung@polyu.edu.hk

Office: TU305
