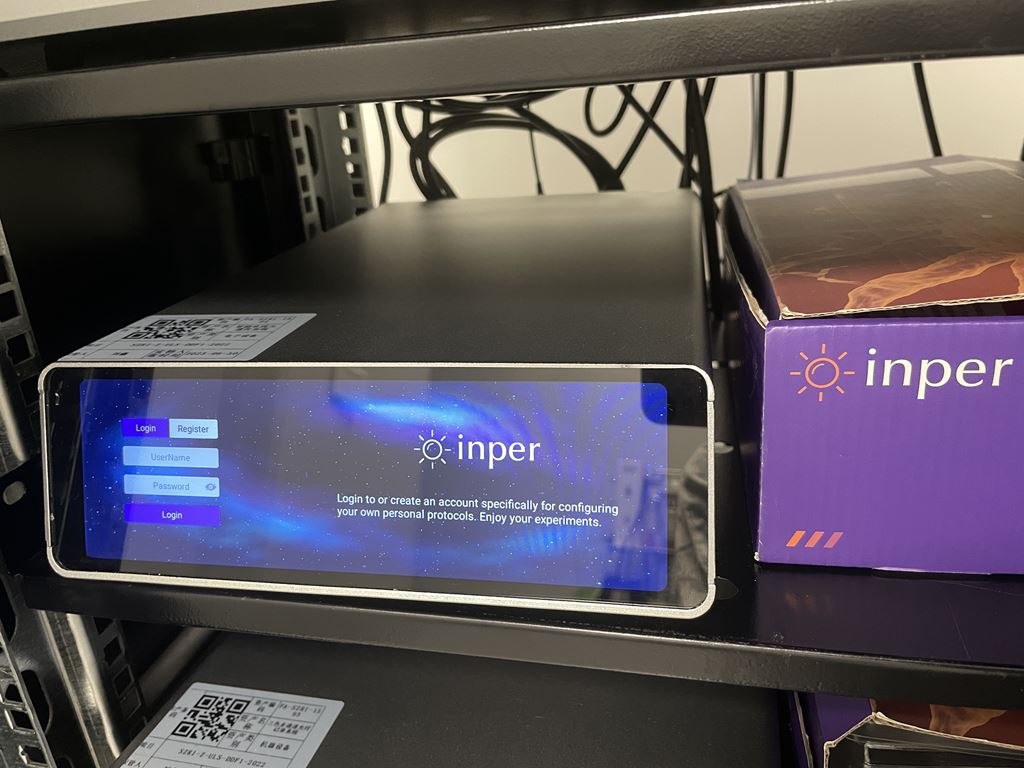

Inper Intelligent Wired Optical Genetic System

Introduction:

Precise regulation of neuronal activity and neural circuit activity at the temporal and spatial levels can be used in combination with all behavioral devices and behavioral software to trigger optogenetic stimulation in animals performing a certain behavior or animals entering a certain area.

Specifications:

• Main device: SFOS-589 & 635, integrated light source and control module, integrated aluminum alloy fuselage, touch screen control
• Light source type: laser light source, wavelength 589 and 635 nm
• Intensity adjustment: 635 nm light source 0-100 mW adjustable, 589 nm light source 0-60 mW adjustable, adjustment accuracy 0.1 %
• Optical stimulation waveform: Square, Constant, Sine, Triangular, Linear, Exponential, Polynomial seven kinds of optical stimulation waveforms can be output, all waveforms can be combined in the same program output
• Optical stimulation frequency and pulse width: frequency 0.001-1000 Hz, adjustable precision 0.001 Hz, pulse width: 0.1-100000 ms, adjustable precision 0.1 ms
• Signal input: 0.5-10.0 V signal input can be accepted, and TTL and Analog signals can be identified
• Trigger mode: four trigger modes can be realized: edge, random, real-time and gating, with up to 100 Hz signal trigger
• Trigger delay and refractory period: delay response time 1 ms-9999 ms adjustable, adjustment accuracy 1 ms; the refractory period is adjustable from 0 to 3600 s, and the adjustment accuracy is 0.1 s

Consumables:

• The fiber optic cannula with Ø1.25mm ferrule
• The fiber optic cannula with Ø2.5mm ferrule
• Optical Fiber Patch Cable (mono, dual or multiple fiber cables) with a standard FC or SMA connector on one end for connecting a light source  or fiber photometry system, and  Ø1.25 mm or Ø 2.5 mm ferrule on the other end for connecting fiber optic cannula via a mating sleeve
