Perkin-Elmer IVIS Lumina X5 Imaging System

Introduction:

The IVIS® Lumina X5 high-throughput 2D optical imaging system combines high-sensitivity bioluminescence and fluorescence with high-resolution x-ray into a compact system that fits on benchtop. It consists of 26 filter sets that allow imaging of reporters that emit from green to near-infrared lights. With an expanded 5 mouse field of view for 2D optical imaging plus our unique line of accessories to accelerate setup and labeling. The system functions include bioluminescence, fluorescence imaging, Cherenkov imaging, white light and X-ray imaging.

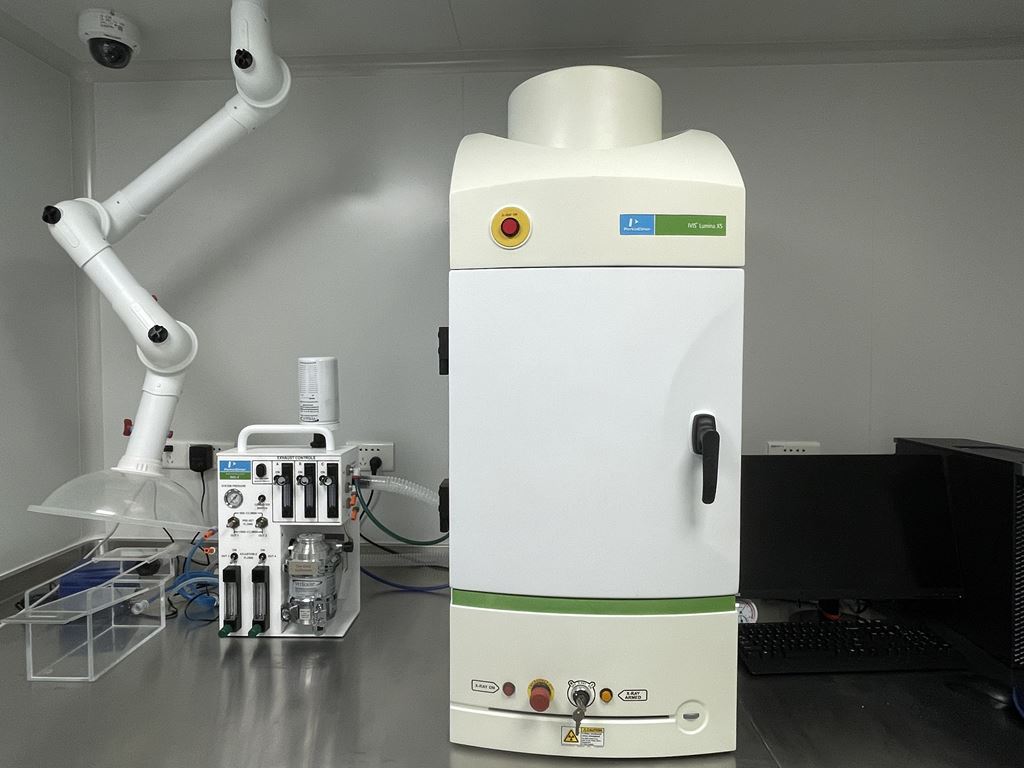

Y720q-Perkin-Elmer IVIS Lumina X5 Imaging System

Specifications:

  • Optical detector: Full-frame back-illuminated back-thinning science first-level cooled CCD
  • Number of pixels2048 × 2048
  • Quantum efficiency>85% at 500 - 700 nm, >30% at 400 - 900 nm
  • Pel size13.5 microns
  • Range of visual field: 10 x 10, 15 x 15, 20 x 20 cm
  • Lens aperture range: f/1 – f/10
  • Minimum pixel resolution: 50 microns
  • Fluorescent light source :150 watts near infrared enhanced metal halogen lamp
  • Number of standard excitation light filters :19 (420, 440, 460, 480, 500,520, 540, 560, 580, 600,620, 640, 660, 680, 700, 720,740, 760, 780 nm)
  • Number of standard emission light filters: 7 (520, 570, 620, 670,710, 790, 845 nm)
  • It has the functions of fluorescence spectrum separation and multi-probe imaging
  • Temperature range of experimental animal stage: 20 - 40

X-ray imaging module:

  • Radiation protection shielding box: The safety standards are higher than the US FDA's safety standards for radioactive equipment (21 CFR-1020.40)
  • Radiation leakage:0.1mR/hr
  • Voltage and current range of X light source0 - 50kV / 0 - 1mA
  • X-ray anode material: tungsten
  • Standard X-ray imaging time10s
  • X-ray imaging of animal height (CM): 0 - 5.3
  • Multimodality imaging: Automatic fusion of optical and X-ray effects across all visual fields

RAS-4 Rodent Anesthesia System:

It facilitates efficient gas delivery via four delivery circuits while minimizing excess gas exposure to lab personnel with active scavenging capabilities.

Key features include:

  • Delivers anesthesia to two instruments, an induction chamber and benchtop accessories simultaneously
  • Separate dedicated exhaust for induction chamber to prevent anesthesia exposure when opening
  • Oversized vented induction chamber to accommodate rats
  • Only isoflurane can be used

Ms. Dexiu ZHENG

Assistant Scientific officer
